Factory wholesale price Digital 12 channels touch screen ECG electrocardiogram machine EC38

Product Categories
SUCE (HONG KONG) IMPORT AND EXPORT LIMITED
Contact Now

Factory wholesale price Digital 12 channels touch screen ECG electrocardiogram machine EC38

Place of Origin : China

Brand Name : CONTEC

Model Number : EC38

Packaging Details : Standard export package

Supply Ability : 1000 Piece/Pieces per Month

Price : $399.00/Sets

Certification : CE,ISO13485

MOQ : 1pc

Payment Terms : T/T, Western Union,Payoneer

Delivery Time : about 5 days

Power Source : Electric

Warranty : 2 years

After-sale Service : Free spare parts

Power Supply Mode : Plug-in

Material : Metal, Steel

Shelf Life : 2 years

Quality Certification : ce

Instrument classification : Class II

Safety standard : None

Product name : 12 channels ECG machine

Display : 7" LCD Color Touch Screen

High Frequency : 70Hz/100Hz/150Hz

Standard/Cabrera : 12-Leads

System input : RS-232/ USB2.0/ RJ-45/ SD Interface

Dimension : 375mmx365mmx230mm; 4.5kg

Weight : 2.2 kg

Paper size : 210mmx20m, thermal roll paper

Recording mode : Thermal array printer

Battery : yes

Contact Now

Factory wholesale price CONTEC Digital Twelve channels touch screen ECG electrocardiogram machine EC38

Factory wholesale price Digital 12 channels touch screen ECG electrocardiogram machine EC38

Overview - Digital Twelve Channel ECG Machine

1.7" TFT, touch screen, LED backlight 2. Digital isolation technology and signal PRO-cessing solution, digital filter 3. Patient managment, name and age and ID. 4. Detail analysis report. 5. Multi-language options: Germany, France, Italian, Turkey, etc 6. Built-in lithium rechargeable battery, wide thermall printing system 7. USB and LAN socket. Memory: Built-in memory or mini SD Memory card. Store more than 1000 pieces of archive 8. Auto-measurement, auto-analysis, and auto-interpretation.

Technical parameters
Standard 12 leads
Standard 12 leads
Measurement parameters
HR, P-R interval, P-Duration, QRS Duration, Q-T interval, Q-Tc, P Axis, QRS Axis, T Axis, R(V5), S(V1), R(V5)+S(V1)
Patient leak current
<10µA
Frequency response
0.05 ~ 150Hz(-3dB)
Time Constant:
≥ 3.2s
CMRR:
> 100dB
Dimention of recording paper
80mmx20m
Paper speed
25mm/s, 50mm/s
Input Circuit:
< 50μA
Noise Level:
≤ 15μVp∽p
Sensitivity valve:
5, 10, 20mm/mV.
Polarization Voltage:
±300mV
Calibration Voltage:
1mV ±2%
Product safety type
Class I, CF. Defibrillation and pacing protection
Dimension
130mm(L)¡Á 74mm(W)¡Á 25mm(H)
NET Weight
2.3KG
Input Impedance:
≥ 50 MΩ
Detailed Images

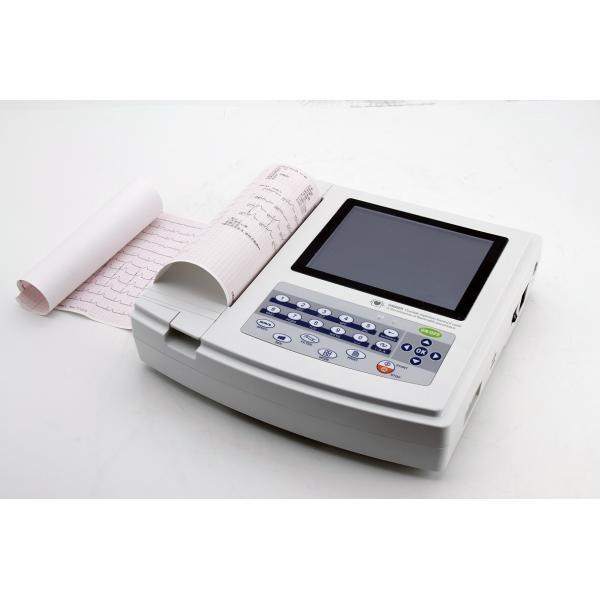

Factory wholesale price Digital 12 channels touch screen ECG electrocardiogram machine EC38

Wholesale Factory wholesale price Digital 12 channels touch screen ECG electrocardiogram machine EC38 from china suppliers

Factory wholesale price Digital 12 channels touch screen ECG electrocardiogram machine EC38 Images
